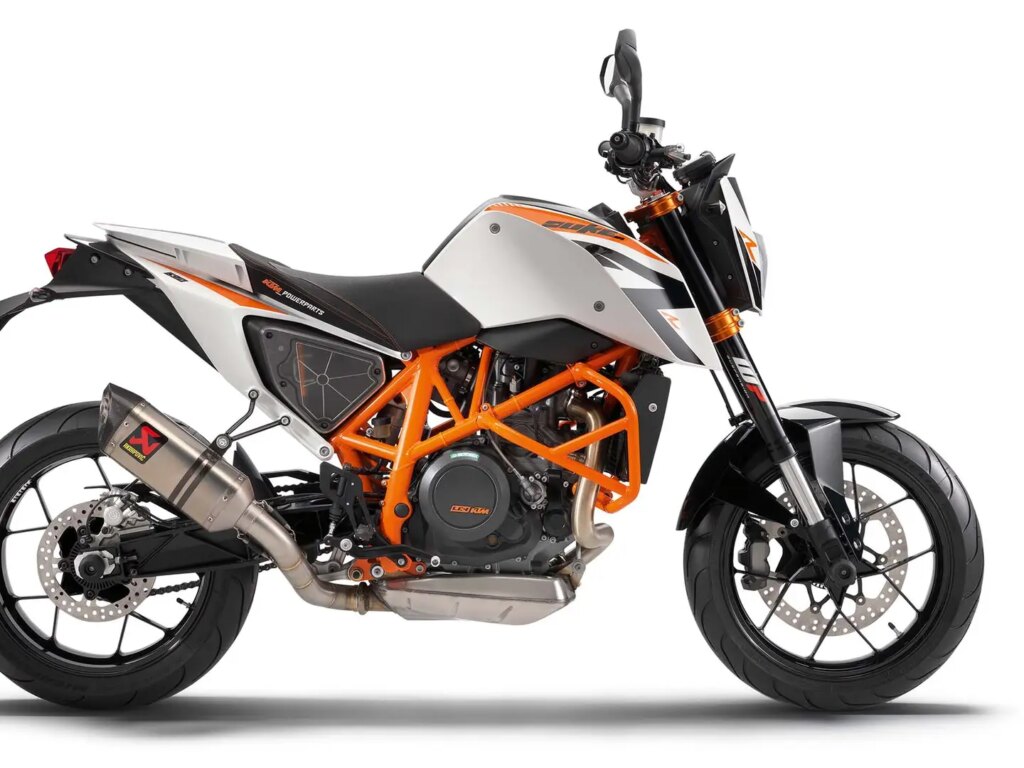

These are the known mechanical and performance specifications for your 2014 KTM 690 ABS Duke.
ModelKTM 690 ABS Duke
Displacement690.00 ccm (42.10 cubic inches)
DetailsSingle cylinder, four-stroke
Bore/Stroke102.0 x 84.5 mm (4.0 x 3.3 inches)
IgnitionContactless, controlled, fully electronic ignition system with digital ignition timing adjustment
LubricationSemi-dry-sump lubrication with 2 rotor pumps
ClutchAPTC Anti-hopping clutch / hydraulically operated
Driveline5/8 x 1/4 X Ring. Primary drive: 36:79.
Fuel Economy & Polution
Fuel Capacity14.00 litres (3.70 gallons)
Frame TypeTubular space frame made from chrome molybdenum steel, powder-coated
Front SuspensionWP Suspension 4357
Front Travel135 mm (5.3 inches)
Rear SuspensionWP Suspension 4618 EM with Pro Lever linkage
Rear Travel135 mm (5.3 inches)
Seat Height835 mm (32.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Ground Clearance192 mm (7.6 inches)
Wheelbase1,466 mm (57.7 inches)
Dry Weight149.5 kg (329.6 pounds)
Wheels & Brakes
Front BrakesSingle disc. ABS. Floating disc. Four-piston calipers. Radially mounted.
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. ABS. Floating disc. Single-piston caliper.
Rear Brake Diameter240 mm (9.4 inches)
It appears you're interested in specifications for the KTM 690 ABS Duke. This Naked bike model is powered by a Single cylinder, four-stroke engine with 690.00 ccm (42.10 cubic inches) of actual displacement before compression. Fueling is metered via Injection allowing this machine to produce its 67.05 HP (48.9 kW) horsepower and torque. According to our records engine heat of the KTM 690 ABS Duke is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is and the rear is . The entire package is supported by the frame, Tubular space frame made from chrome molybdenum steel, powder-coated. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. ABS. Floating disc. Four-piston calipers. Radially mounted. front brakes and Single disc. ABS. Floating disc. Single-piston caliper. rear brakes. The KTM 690 ABS Duke was launched in 2014, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
