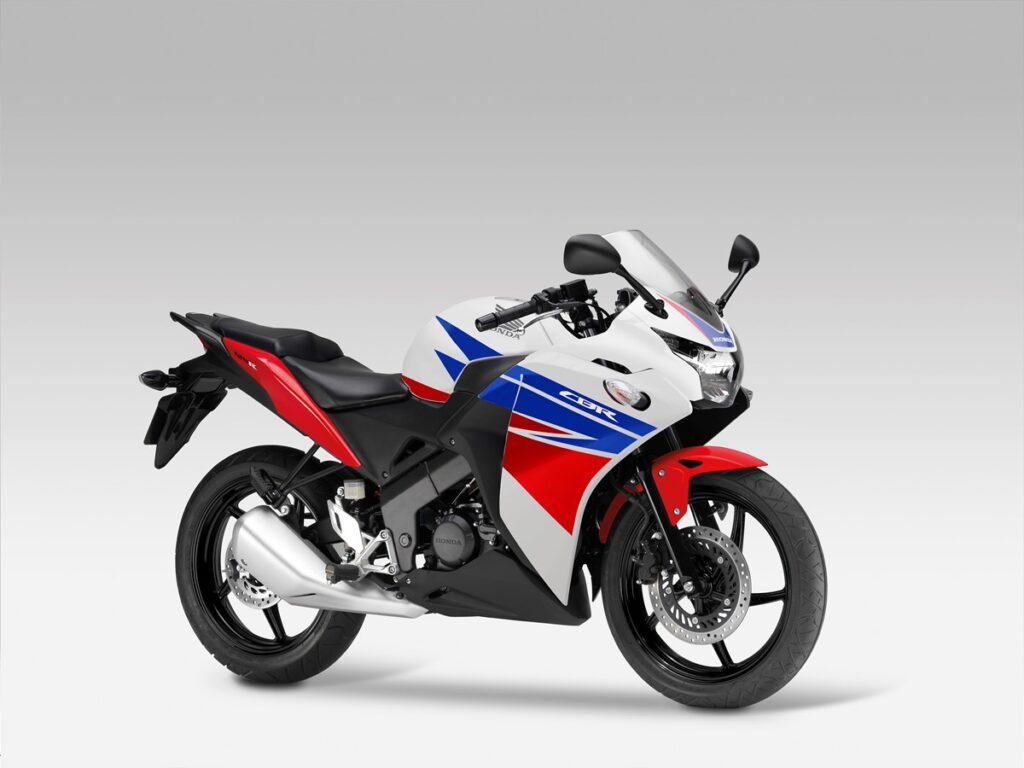

2015 Honda CBR125R Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2015 Honda CBR125R.

Basic Specs

Year2015
MakeHonda
ModelHonda CBR125R
TypeSport
Cost

Engine

Displacement124.70 ccm (7.61 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.0:1
Bore/Stroke
Valves/Cylinder2
FuelingInjection
Ignition
Exhaust
LubricationForced pressure and wet sump
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet, multiplate, mechanical cable-actuated.
DrivelineO-ring sealed chain

Performance

Horespower12.07 HP (8.8 kW)
Torque10.40 Nm (1.1 kgf-m or 7.7 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity13.00 litres (3.43 gallons)
Emissions

Chassis

Frame TypeDiamond
Rake
Trail
Front SuspensionTelescopic
Front Travel
Rear SuspensionMonshock
Rear Travel
Seat
Seat Height795 mm (31.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,089 mm (42.9 inches)
Total Length1,946 mm (76.6 inches)
Total Width704 mm (27.7 inches)
Ground Clearance185 mm (7.3 inches)
Wheelbase1,070 mm (42.1 inches)
Dry Weight138.0 kg (304.2 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre80/90-17
Rear Tire/Tyre100/80-17
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
WheelsU-section 6-spoke cast aluminium

Comments

It appears you're interested in specifications for the Honda CBR125R. This Sport model is powered by a Single cylinder, four-stroke engine with 124.70 ccm (7.61 cubic inches) of actual displacement before 11.0:1 compression. Fueling is metered via Injection allowing this machine to produce its 12.07 HP (8.8 kW) horsepower and 10.40 Nm (1.1 kgf-m or 7.7 ft.lbs) torque. According to our records engine heat of the Honda CBR125R is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 80/90-17 and the rear is 100/80-17 . The entire package is supported by the frame, Diamond. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Honda CBR125R was launched in 2015, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
