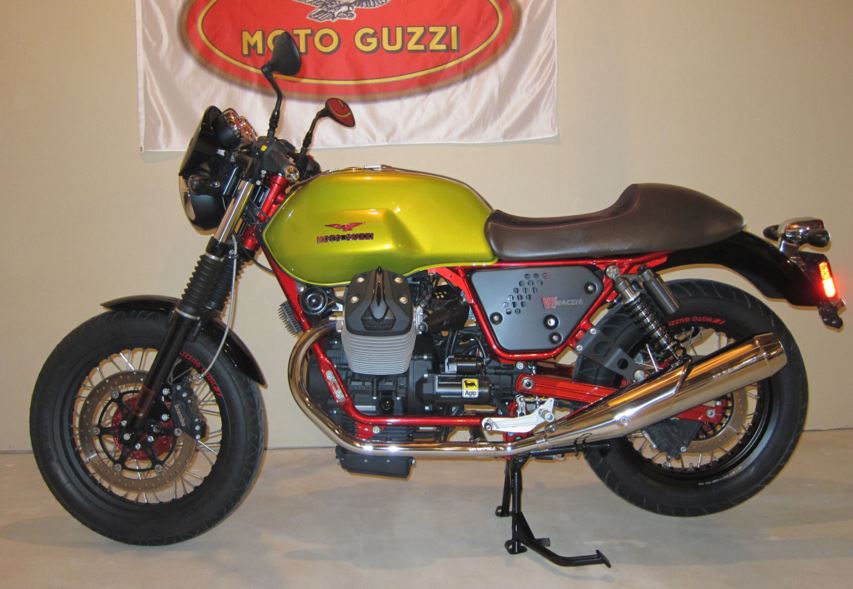

2015 Moto Guzzi V7 Racer Verde Legnano SE Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2015 Moto Guzzi V7 Racer Verde Legnano SE.

Basic Specs

Year2015
MakeMoto Guzzi
ModelMoto Guzzi V7 Racer Verde Legnano SE
CostUS$ 10999. Prices depend on country, taxes, accessories, etc.

Engine

Displacement744.00 ccm (45.40 cubic inches)
Type90° V-twin
DetailsV2, four-stroke
Max RPM
Compression
Bore/Stroke
Valves/Cylinder
FuelingInjection. Weber-Marelli
Ignition
ExhaustThree-way catalytic converter with double lambda probe
LubricationForced circulation with lobe pump - circuit capacity: 1.78 Kg
Cooling

Drivetrain

Gearbox5-speed
Final DriveShaft drive (cardan)
ClutchDry single plate with flexible couplings
DrivelineC.A.R.C. Compact Reactive Shaft Drive

Performance

Horespower50.00 HP (36.5 kW)
Torque57.90 Nm (5.9 kgf-m or 42.7 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity22.00 litres (5.81 gallons)
Emissions

Chassis

Frame TypeDouble cradle tubular frame in ALS steel with detachable rear subframe
Rake27.5°
Trail109 mm (4.3 inches)
Front SuspensionTelescopic hydraulic fork with 40 mm stanchions
Front Travel
Rear SuspensionDie cast light alloy swing arm with 2 spring preload adjustable shock absorbers
Rear Travel
Seat
Seat Height780 mm (30.7 inches) If adjustable, lowest setting.
Alt. Seat Height803 mm (31.6 inches) If adjustable, highest setting.
Total Height1,113 mm (43.8 inches)
Total Length2,184 mm (86.0 inches)
Total Width800 mm (31.5 inches)
Ground Clearance
Wheelbase1,449 mm (57.0 inches)
Dry Weight
Wet Weight198.0 kg (436.5 pounds)

Wheels & Brakes

Front Tire/Tyre100/90-18
Rear Tire/Tyre130/80-17
Front BrakesSingle disc. Brembo caliper with 4 differentiated pistons
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Floating disc. Two-piston calipers.
Rear Brake Diameter260 mm (10.2 inches)
WheelsSpoked steel rims

Comments

It appears you're interested in specifications for the Moto Guzzi V7 Racer Verde Legnano SE. This Classic model is powered by a 90° V-twin V2, four-stroke engine with 744.00 ccm (45.40 cubic inches) of actual displacement before compression. Fueling is metered via Injection. Weber-Marelli allowing this machine to produce its 50.00 HP (36.5 kW) horsepower and 57.90 Nm (5.9 kgf-m or 42.7 ft.lbs) torque. According to our records engine heat of the Moto Guzzi V7 Racer Verde Legnano SE is moderated by . You'll need to get familiar with the 5-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 100/90-18 and the rear is 130/80-17 . The entire package is supported by the frame, Double cradle tubular frame in ALS steel with detachable rear subframe. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Brembo caliper with 4 differentiated pistons front brakes and Single disc. Floating disc. Two-piston calipers. rear brakes. The Moto Guzzi V7 Racer Verde Legnano SE was launched in 2015, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Special edition of 50 units sold in the US.
