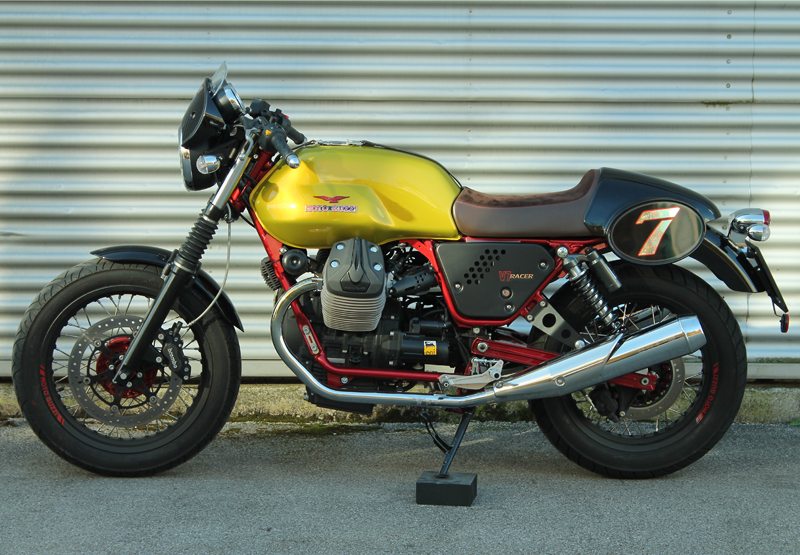

These are the known mechanical and performance specifications for your 2015 Moto Guzzi V7 Racer.
Basic Specs
Year2015
MakeMoto Guzzi
ModelMoto Guzzi V7 Racer
TypeClassic
CostUS$ 10490. Prices depend on country, taxes, accessories, etc.
Engine
Displacement744.00 ccm (45.40 cubic inches)
Type90° V-twin
DetailsV2, four-stroke
Max RPM
Compression
Bore/Stroke
Valves/Cylinder
FuelingInjection. Weber-Marelli
Ignition
ExhaustThree-way catalytic converter with double lambda probe
LubricationForced circulation with lobe pump - circuit capacity: 1.78 Kg
Cooling
Drivetrain
Gearbox5-speed
Final DriveShaft drive (cardan)
ClutchDry single plate with flexible couplings
DrivelineCA.R.C. Compact Reactive Shaft Drive
Performance
Horespower49.62 HP (36.2 kW)
Torque57.90 Nm (5.9 kgf-m or 42.7 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity21.95 litres (5.80 gallons)
Emissions
Chassis
Frame TypeDouble cradle tubular frame in ALS steel with detachable rear subframe
Rake
Trail
Front SuspensionTelescopic hydraulic fork with 40 mm stanchions
Front Travel
Rear SuspensionDie cast light alloy swing arm with 2 spring preload adjustable shock absorbers
Rear Travel
Seat
Seat Height780 mm (30.7 inches) If adjustable, lowest setting.
Alt. Seat Height803 mm (31.6 inches) If adjustable, highest setting.
Total Height1,113 mm (43.8 inches)
Total Length2,184 mm (86.0 inches)
Total Width800 mm (31.5 inches)
Ground Clearance
Wheelbase
Dry Weight
Wet Weight179.0 kg (394.6 pounds)
Wheels & Brakes
Front Tire/Tyre100/90-18
Rear Tire/Tyre130/80-17
Front BrakesSingle disc. Brembo caliper with 4 differentiated pistons
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Floating disc. Two-piston calipers.
Rear Brake Diameter260 mm (10.2 inches)
WheelsAluminium spoked black anodised rims
