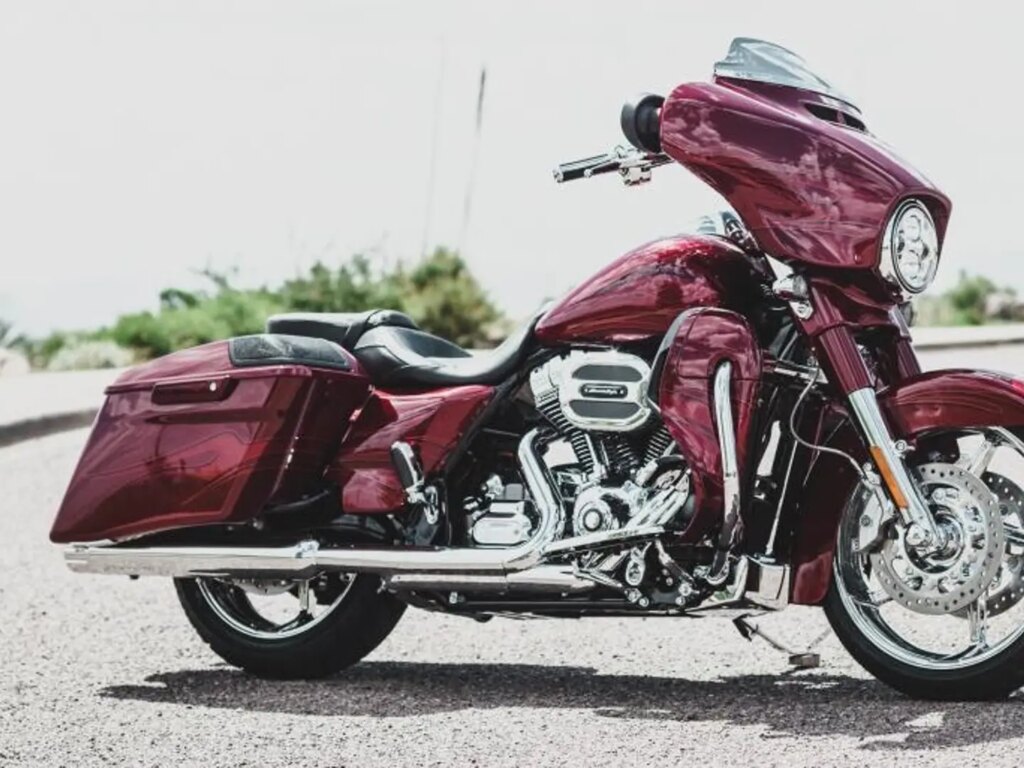

These are the known mechanical and performance specifications for your 2016 Harley-Davidson CVO Street Glide.
Basic Specs
Year2016
MakeHarley-Davidson
ModelHarley-Davidson CVO Street Glide
TypeTouring
CostUS$ 36799. Euro 38485. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1801.00 ccm (109.90 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke101.6 x 111.3 mm (4.0 x 4.4 inches)
Valves/Cylinder
FuelingInjection. ESPFI
Ignition
ExhaustChrome dual exhaust with 4 inch touring mufflers and touring muffler shields
LubricationDry sump
CoolingOil & air
Drivetrain
Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelineChain, 34/46 ratio primary drive
Performance
Horespower97.90 HP (71.5 kW)
Torque156.00 Nm (15.9 kgf-m or 115.1 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption5.70 litres/100 km (17.5 km/l or 41.27 mpg)
Fuel Capacity22.71 litres (6.00 gallons)
Emissions132.2 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame Type
Rake26.0°
Trail170 mm (6.7 inches)
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionTwin shocks
Rear Travel
Seat
Seat Height690 mm (27.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,450 mm (96.5 inches)
Total Width
Ground Clearance125 mm (4.9 inches)
Wheelbase1,625 mm (64.0 inches)
Dry Weight380.0 kg (837.8 pounds)
Wet Weight398.0 kg (877.4 pounds)
Wheels & Brakes
Front Tire/Tyre130/70-B19
Rear Tire/Tyre180/55-BW18
Front BrakesDouble disc. ABS. 4-piston
Front Brake Diameter
Rear BrakesSingle disc. ABS. 4-piston
Rear Brake Diameter
WheelsMirror Chrome Aggressor Custom Wheel
Comments
Windshield. Cruise control. Alarm.
