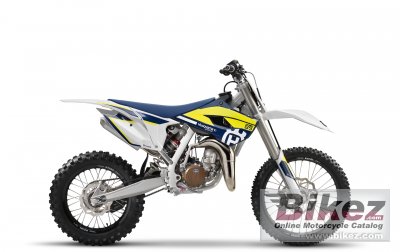

These are the known mechanical and performance specifications for your 2016 Husqvarna TC 85 19-16.
Basic Specs

Engine
Displacement84.93 ccm (5.18 cubic inches)
TypeTitanium valves in radial arrangement
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke47.0 x 49.0 mm (1.9 x 1.9 inches)
Valves/Cylinder
FuelingInjection
IgnitionMoric Digital 2M1
Exhaust
LubricationMixture oil lubrication
CoolingLiquid
Drivetrain
Gearbox6-speed
Final DriveChain
ClutchWet, multi-disc clutch, Formula hydraulics
Driveline
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity5.00 litres (1.32 gallons)
Emissions
Chassis
Frame TypeChrome-molybdenum steel central-tube frame
Rake24.0°
Trail
Front SuspensionWP upside-down Ø 43 mm
Front Travel270 mm (10.6 inches)
Rear SuspensionWP PDS shock absorber
Rear Travel300 mm (11.8 inches)
Seat
Seat Height855 mm (33.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance352 mm (13.9 inches)
Wheelbase1,290 mm (50.8 inches)
Dry Weight69.0 kg (152.1 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre80/100-19
Rear Tire/Tyre120/90-16
Front BrakesSingle disc. Four-pot brake caliper
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc. Two-pot brake caliper
Rear Brake Diameter200 mm (7.9 inches)
Wheels
