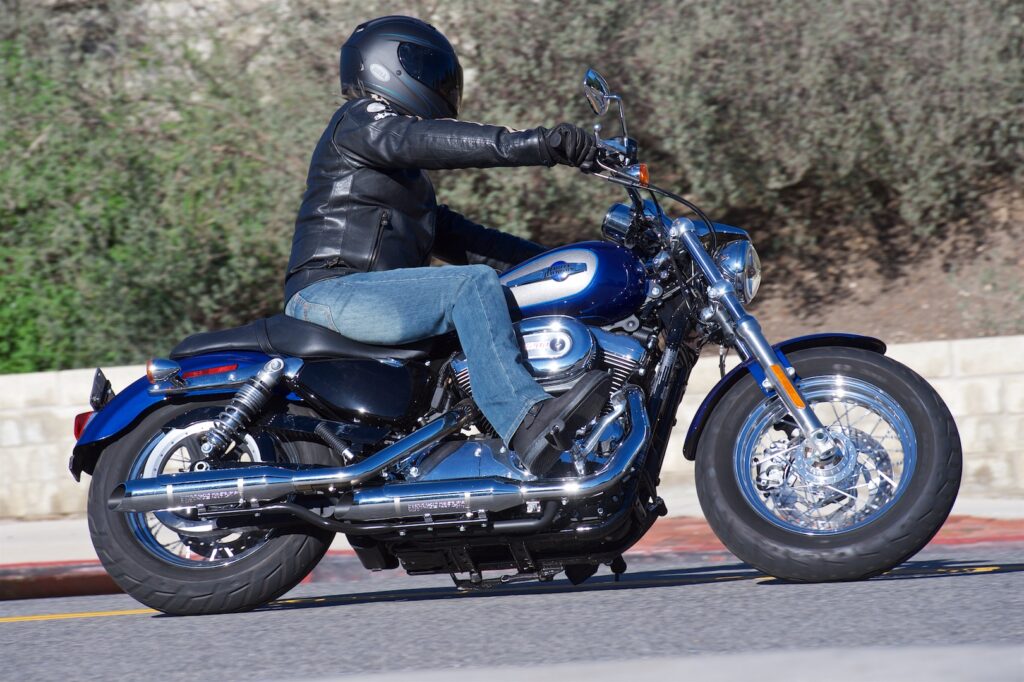

These are the known mechanical and performance specifications for your 2017 Harley-Davidson Sportster 1200 Custom.
Basic Specs
Year2017
MakeHarley-Davidson
ModelHarley-Davidson Sportster 1200 Custom
TypeCustom / cruiser
CostUS$ 10999. Euro 12265. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1201.25 ccm (73.30 cubic inches)
TypeAir-cooled, Evolution®
DetailsV2, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke88.9 x 96.8 mm (3.5 x 3.8 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
ExhaustChrome, staggered exhaust with slash-cut mufflers
LubricationDry sump
CoolingAir
Drivetrain
Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
Driveline
Performance
Horespower68.00 HP (49.6 kW)
Torque96.00 Nm (9.8 kgf-m or 70.8 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption4.90 litres/100 km (20.4 km/l or 48.00 mpg)
Fuel Capacity2.80 litres (0.74 gallons)
Emissions113.7 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame Type
Rake30.0°
Trail107 mm (4.2 inches)
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionTwin shocks
Rear Travel
Seat
Seat Height676 mm (26.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,220 mm (87.4 inches)
Total Width
Ground Clearance112 mm (4.4 inches)
Wheelbase1,530 mm (60.2 inches)
Dry Weight255.0 kg (562.2 pounds)
Wet Weight268.0 kg (590.8 pounds)
Wheels & Brakes
Front Tire/Tyre130/90-B16
Rear Tire/Tyre150/80-B16
Front BrakesSingle disc. Dual piston, optional ABS.
Front Brake Diameter
Rear BrakesSingle disc. Dual piston, optional ABS.
Rear Brake Diameter
WheelsChrome, 5-Spoke Cast Aluminum
