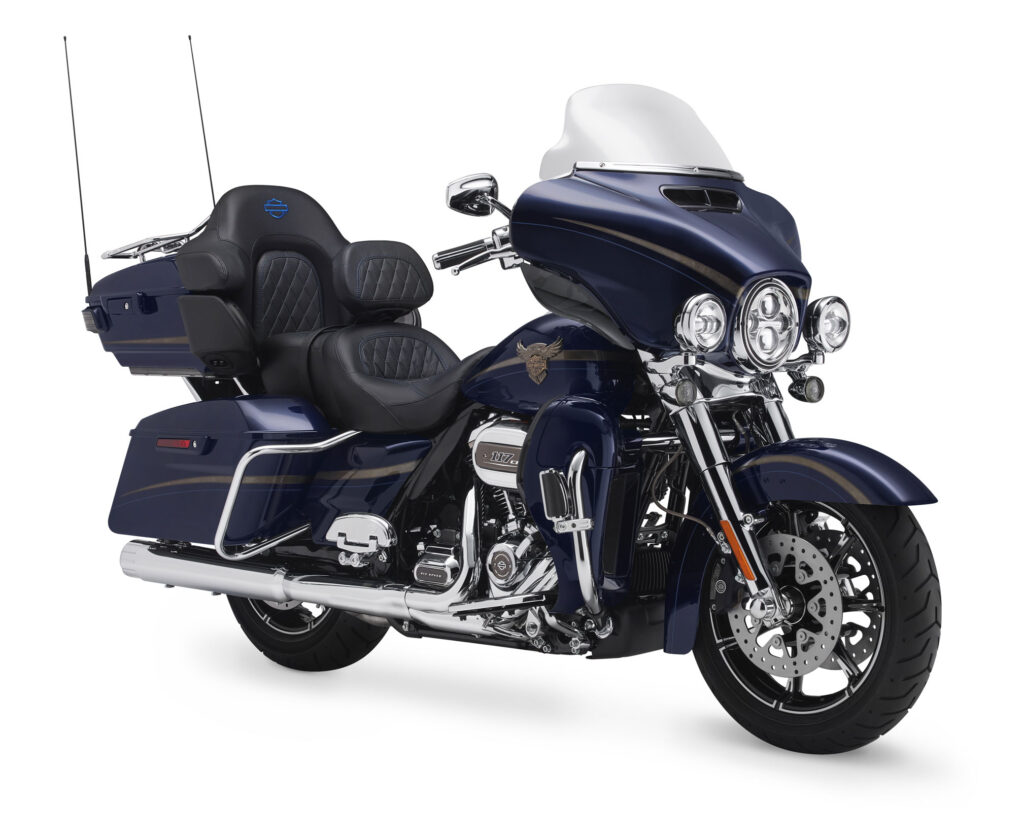

These are the known mechanical and performance specifications for your 2018 Harley-Davidson 115th Anniversary CVO Limited.
Basic Specs
Year2018
MakeHarley-Davidson
ModelHarley-Davidson 115th Anniversary CVO Limited
TypeTouring
CostUS$ 43949. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1923.00 ccm (117.34 cubic inches)
TypeTwin-Cooled™ Milwaukee-Eight® 117
DetailsV2, four-stroke
Max RPM
Compression10.2:1
Bore/Stroke103.5 x 114.3 mm (4.1 x 4.5 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection
Ignition
ExhaustDual, with crossover
LubricationDry sump
CoolingOil & air
Drivetrain
Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelineChain, 34/46 ratio primary drive
Performance
Horespower105.00 HP (76.6 kW)
Torque167.00 Nm (17.0 kgf-m or 123.2 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption6.30 litres/100 km (15.9 km/l or 37.34 mpg)
Fuel Capacity22.71 litres (6.00 gallons)
Emissions146.2 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame Type
Rake26.0°
Trail170 mm (6.7 inches)
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionTwin shocks
Rear Travel
Seat
Seat Height720 mm (28.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,600 mm (102.4 inches)
Total Width
Ground Clearance125 mm (4.9 inches)
Wheelbase1,625 mm (64.0 inches)
Dry Weight411.0 kg (906.1 pounds)
Wet Weight428.0 kg (943.6 pounds)
Wheels & Brakes
Front Tire/Tyre130/80-B17
Rear Tire/Tyre180/65-B16
Front BrakesDouble disc. ABS, 4-piston
Front Brake Diameter
Rear BrakesSingle disc. ABS, 4-piston
Rear Brake Diameter
WheelsGloss Black und Contrast Chrome Slicer
Comments
Windshield. Cruise control. Alarm. Infotainment.
