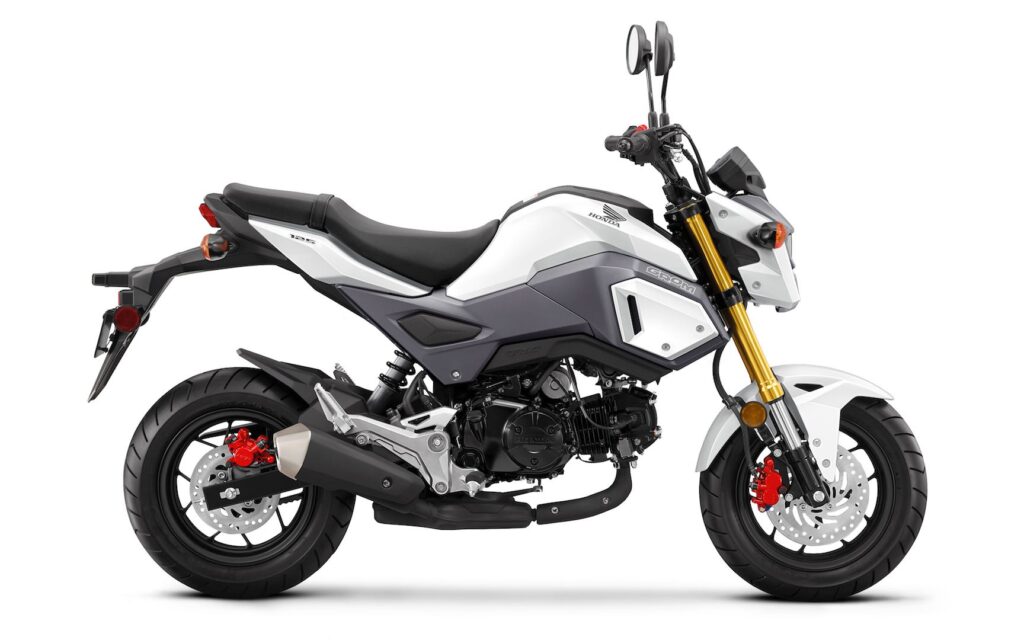

2018 Honda Grom ABS Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2018 Honda Grom ABS.

Basic Specs

Year2018
MakeHonda
ModelHonda Grom ABS
TypeSport
CostUS$ 3549. Prices depend on country, taxes, accessories, etc.

Engine

Displacement124.90 ccm (7.62 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.3:1
Bore/Stroke52.4 x 57.9 mm (2.1 x 2.3 inches)
Valves/Cylinder2
FuelingInjection. PGM-FI with automatic enrichment
IgnitionElectronic
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox4-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption1.76 litres/100 km (56.8 km/l or 133.65 mpg)
Fuel Capacity5.49 litres (1.45 gallons)
Emissions40.8 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake25.0°
Trail81 mm (3.2 inches)
Front Suspension31mm inverted fork
Front Travel118 mm (4.6 inches)
Rear SuspensionSingle shock with steel box-section swingarm
Rear Travel70 mm (2.8 inches)
Seat
Seat Height754 mm (29.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,199 mm (47.2 inches)
Dry Weight
Wet Weight106.1 kg (234.0 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-12
Rear Tire/Tyre130/70-12
Front BrakesSingle disc. ABS. Hydraulic. Two-piston calipers.
Front Brake Diameter220 mm (8.7 inches)
Rear BrakesSingle disc. ABS. Hydraulic. Single-piston caliper.
Rear Brake Diameter190 mm (7.5 inches)
Wheels

Comments

It appears you're interested in specifications for the Honda Grom ABS. This Sport model is powered by a Single cylinder, four-stroke engine with 124.90 ccm (7.62 cubic inches) of actual displacement before 9.3:1 compression. Fueling is metered via Injection. PGM-FI with automatic enrichment allowing this machine to produce its horsepower and torque. According to our records engine heat of the Honda Grom ABS is moderated by Air. You'll need to get familiar with the 4-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-12 and the rear is 130/70-12 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. ABS. Hydraulic. Two-piston calipers. front brakes and Single disc. ABS. Hydraulic. Single-piston caliper. rear brakes. The Honda Grom ABS was launched in 2018, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model ID: Grom125A
