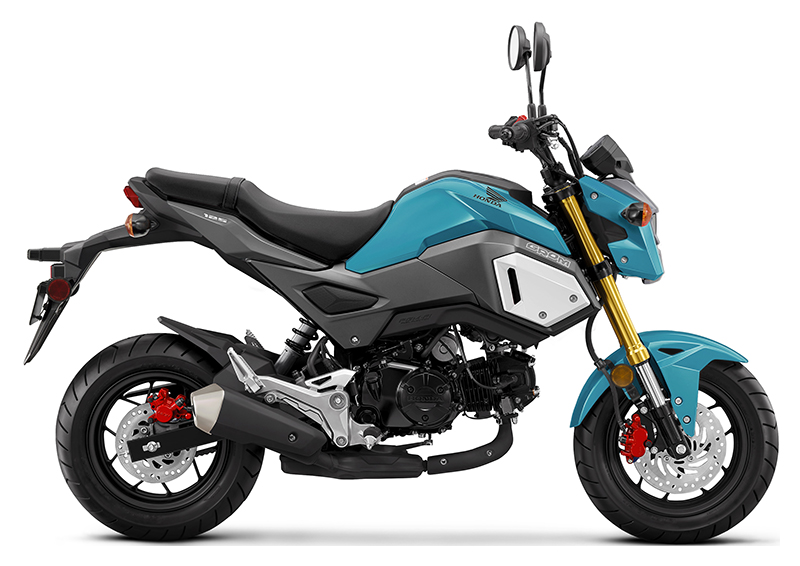

These are the known mechanical and performance specifications for your 2019 Honda Grom ABS.
Basic Specs
Engine
Displacement124.90 ccm (7.62 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.3:1
Bore/Stroke52.4 x 57.9 mm (2.1 x 2.3 inches)
Valves/Cylinder2
FuelingInjection. PGM-FI with automatic enrichment
IgnitionElectronic
Exhaust
Lubrication
CoolingAir
Fuel Economy & Polution
Fuel Consumption1.76 litres/100 km (56.8 km/l or 133.65 mpg)
Fuel Capacity5.49 litres (1.45 gallons)
Emissions40.8 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame Type
Rake25.0°
Trail81 mm (3.2 inches)
Front Suspension31mm inverted fork
Front Travel118 mm (4.6 inches)
Rear SuspensionSingle shock with steel box-section swingarm
Rear Travel70 mm (2.8 inches)
Seat
Seat Height754 mm (29.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height988 mm (38.9 inches)
Total Length1,760 mm (69.3 inches)
Total Width754 mm (29.7 inches)
Ground Clearance165 mm (6.5 inches)
Wheelbase1,199 mm (47.2 inches)
Dry Weight
Wet Weight106.1 kg (234.0 pounds)
Wheels & Brakes
Front Tire/Tyre120/70-12
Rear Tire/Tyre130/70-12
Front BrakesSingle disc. ABS. Hydraulic. Two-piston calipers.
Front Brake Diameter220 mm (8.7 inches)
Rear BrakesSingle disc. ABS. Hydraulic. Single-piston caliper.
Rear Brake Diameter190 mm (7.5 inches)
Wheels
Comments
Model ID: Grom125A
