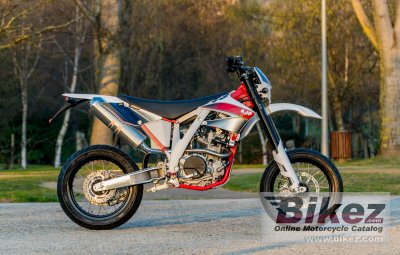

2020 AJP PR5 Supermoto 250 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2020 AJP PR5 Supermoto 250.

Basic Specs

Year2020
MakeAJP
ModelAJP PR5 Supermoto 250
Cost

Engine

Displacement249.0 ccm (15.19 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke77.0 x 53.6 mm (3.0 x 2.1 inches)
Valves/Cylinder4
FuelingInjection. Delphi fuel injection system 34mm
Ignition
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
ClutchOil bath, multidisc
Driveline

Performance

Horespower27.5 HP (20.1 kW) @ 8000 RPM
Torque23.0 Nm (2.3 kgf-m or 17.0 ft.lbs) @ 7000 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity7.50 litres (1.98 US gallons)
Emissions

Chassis

Frame TypeComposite aluminum/steel
Rake
Trail
Front SuspensionZF Sachs 48 mm, fully adjustable
Front Travel300 mm (11.8 inches)
Rear SuspensionZF Sachs, fully adjustable
Rear Travel300 mm (11.8 inches)
Seat
Seat Height890 mm (35.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance310 mm (12.2 inches)
Wheelbase1465 mm (57.7 inches)
Dry Weight
Wet Weight123.0 kg (271.2 pounds)

Wheels & Brakes

Front Tire/Tyre100/80-17
Rear Tire/Tyre130/70-17
Front BrakesSingle disc. 2-piston calipers
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc. Single-piston caliper
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the AJP PR5 Supermoto 250. This Super motard model is powered by a Single cylinder, four-stroke engine with 249.0 ccm (15.19 cubic inches) of actual displacement before compression. Fueling is metered via Injection. Delphi fuel injection system 34mm allowing this machine to produce its 27.5 HP (20.1 kW) @ 8000 RPM horsepower and 23.0 Nm (2.3 kgf-m or 17.0 ft.lbs) @ 7000 RPM torque. According to our records engine heat of the AJP PR5 Supermoto 250 is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 100/80-17 and the rear is 130/70-17 . The entire package is supported by the frame, Composite aluminum/steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. 2-piston calipers front brakes and Single disc. Single-piston caliper rear brakes. The AJP PR5 Supermoto 250 was launched in 2020, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Portuguese brand.
