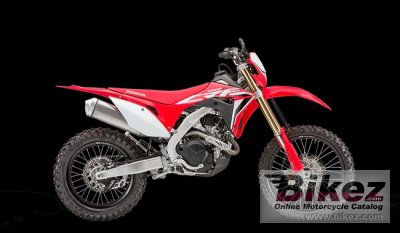

2020 Honda CRF450X Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2020 Honda CRF450X.

Basic Specs

Honda CRF450X
Year2020
MakeHonda
ModelHonda CRF450X
CostUS$ 9799. MSRP depends on country, taxes, accessories, etc.

Engine

Displacement449.0 ccm (27.40 cubic inches)
Type35mm intake valve, 30mm exhaust valve
DetailsSingle cylinder, four-stroke
Max RPM
Compression12.0:1
Bore/Stroke96.0 x 62.0 mm (3.8 x 2.4 inches)
Valves/Cylinder4
FuelingInjection. Programmed Fuel Injection (PGM-FI), 46mm downdraft throttle body
IgnitionDC-CDI
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
Clutch
Driveline#520 T-ring-sealed chain; 13T/51T

Performance

Horespower44.5 HP (32.5 kW) @ 7500 RPM
Torque41.3 Nm (4.2 kgf-m or 30.5 ft.lbs) @ 7000 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity7.61 litres (2.01 US gallons)
Emissions

Chassis

Frame TypeSemi-double cradle, aluminium twin-spar
Rake28.0 deg
Trail117 mm (4.6 inches)
Front Suspension47mm inverted Showa® cartridge fork with 16-position rebound and 16-position compression-damping adjustability; 12.4-inches travel
Front Travel315 mm (12.4 inches)
Rear SuspensionPro-Link® Showa® single shock with adjustable spring-preload, 17-position rebound-damping adjustability, and compression-damping adjustment separated into low-speed (13 positions) and high-speed (3.5 turns); 12.4 inches travel.
Rear Travel312 mm (12.3 inches)
Seat
Seat Height950 mm (37.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance323 mm (12.7 inches)
Wheelbase1481 mm (58.3 inches)
Dry Weight
Wet Weight124.7 kg (275.0 pounds)

Wheels & Brakes

Front Tire/Tyre80/100-21
Rear Tire/Tyre110/100-18
Front BrakesSingle disc. Two-piston calipers.
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter240 mm (9.4 inches)
WheelsDunlop MX52 tires

Comments

It appears you're interested in specifications for the Honda CRF450X. This Enduro / offroad model is powered by a 35mm intake valve, 30mm exhaust valve Single cylinder, four-stroke engine with 449.0 ccm (27.40 cubic inches) of actual displacement before 12.0:1 compression. Fueling is metered via Injection. Programmed Fuel Injection (PGM-FI), 46mm downdraft throttle body allowing this machine to produce its 44.5 HP (32.5 kW) @ 7500 RPM horsepower and 41.3 Nm (4.2 kgf-m or 30.5 ft.lbs) @ 7000 RPM torque. According to our records engine heat of the Honda CRF450X is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 80/100-21 and the rear is 110/100-18 . The entire package is supported by the frame, Semi-double cradle, aluminium twin-spar. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Two-piston calipers. front brakes and Single disc rear brakes. The Honda CRF450X was launched in 2020, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model ID: CRF450X.
