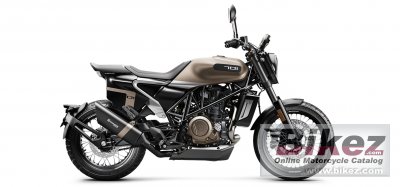

These are the known mechanical and performance specifications for your 2020 Husqvarna Svartpilen 701.
Basic Specs
Engine
Displacement692.7 ccm (42.27 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke105.0 x 80.0 mm (4.1 x 3.1 inches)
Valves/Cylinder
FuelingInjection
Ignition
Exhaust
LubricationForced oil lubrication with 2pumps
CoolingLiquid
Performance
Horespower75.0 HP (54.7 kW)
Torque74.0 Nm (7.5 kgf-m or 54.6 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity12.00 litres (3.17 US gallons)
Emissions
Chassis
Frame TypeChromium-molybdenum steel trellis frame
Rake
Trail
Front SuspensionWP APEX 43
Front Travel150 mm (5.9 inches)
Rear SuspensionWP APEX Monoshock
Rear Travel150 mm (5.9 inches)
Seat
Seat Height
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance164 mm (6.5 inches)
Wheelbase
Dry Weight161.0 kg (354.9 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre
Rear Tire/Tyre
Front BrakesSingle disc. ABS. Floating disc. Four-piston calipers. Radially mounted.
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. ABS. Floating disc. Single-piston caliper.
Rear Brake Diameter
Wheels
