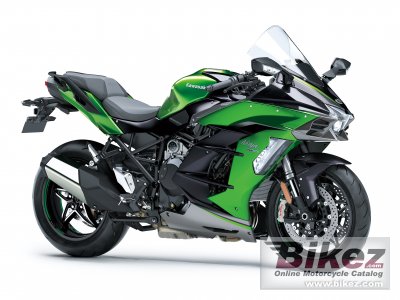

These are the known mechanical and performance specifications for your 2020 Kawasaki Ninja H2 SX SE Plus.
Basic Specs
Year2020
MakeKawasaki
ModelKawasaki Ninja H2 SX SE Plus
TypeSport
CostUS$ 25000. MSRP depends on country, taxes, accessories, etc.
Engine
Displacement998.0 ccm (60.90 cubic inches)
TypeLiquid-cooled, 4-stroke In-Line Four with Supercharger
DetailsIn-line four, four-stroke
Max RPM
Compression8.5:1
Bore/Stroke76.0 x 55.0 mm (3.0 x 2.2 inches)
Valves/Cylinder4
FuelingInjection. DFI® with 40mm throttle bodies (4) with dual injection
IgnitionDigital
Exhaust
LubricationForced lubrication, wet sump with oil cooler
CoolingLiquid
Drivetrain
Gearbox6-speed
Final Drive
ClutchWet multi-disc, manual
DrivelineSealed chain
Performance
Horespower228.0 HP (166.4 kW) @ 11500 RPM
Torque141.7 Nm (14.4 kgf-m or 104.5 ft.lbs) @ 11000 RPM
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity17.00 litres (4.49 US gallons)
Emissions
Chassis
Frame TypeTrellis, high-tensile steel with Swingarm Mounting Plate
Rake24.7 deg
Trail103 mm (4.1 inches)
Front Suspension43mm inverted fork with KECS-controlled rebound and compression damping, manual spring preload adjustability and top-out springs
Front Travel119 mm (4.7 inches)
Rear SuspensionNew Uni-Trak®, BFRC gas charged shock with piggyback reservoir, KECS-controlled compression and rebound damping electronically-adjustable spring preload
Rear Travel140 mm (5.5 inches)
Seat
Seat Height836 mm (32.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1260 mm (49.6 inches)
Total Length2136 mm (84.1 inches)
Total Width770 mm (30.3 inches)
Ground Clearance130 mm (5.1 inches)
Wheelbase1481 mm (58.3 inches)
Dry Weight
Wet Weight261.7 kg (577.0 pounds)
Wheels & Brakes
Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre190/55-ZR17
Front BrakesDouble disc. Floating discs. ABS.
Front Brake Diameter330 mm (13.0 inches)
Rear BrakesSingle disc. ABS.
Rear Brake Diameter250 mm (9.8 inches)
Wheels
Comments
Kawasaki Cornering Management Function (KCMF), Kawasaki Traction Control (KTRC), Kawasaki Launch Control Mode (KLCM), Kawasaki Intelligent anti-lock Brake System (KIBS). Special edition model.
