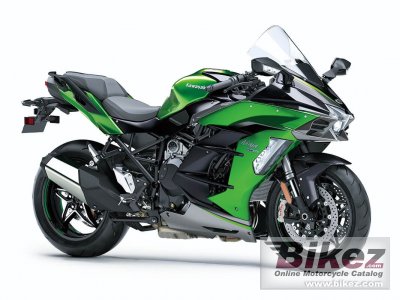

2021 Kawasaki Ninja H2 SX SE Plus Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2021 Kawasaki Ninja H2 SX SE Plus.

Basic Specs

Kawasaki Ninja H2 SX SE Plus
Year2021
MakeKawasaki
ModelKawasaki Ninja H2 SX SE Plus
TypeSport
CostUS$ 25000. MSRP depends on country, taxes, accessories, etc.

Engine

Displacement998.0 ccm (60.90 cubic inches)
TypeSupercharger
DetailsIn-line four, four-stroke
Max RPM
Compression11.2:1
Bore/Stroke76.0 x 55.0 mm (3.0 x 2.2 inches)
Valves/Cylinder4
FuelingInjection. DFI® with 40mm throttle bodies (4) with dual injection
IgnitionDigital
Exhaust
LubricationForced lubrication, wet sump with oil cooler
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
ClutchWet multi-disc, manual
DrivelineSealed chain

Performance

Horespower228.0 HP (166.4 kW) @ 11500 RPM
Torque141.7 Nm (14.4 kgf-m or 104.5 ft.lbs) @ 11000 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity17.00 litres (4.49 US gallons)
Emissions

Chassis

Frame TypeTrellis, high-tensile steel, with swingarm mounting plate
Rake24.7 deg
Trail103 mm (4.1 inches)
Front Suspension43mm inverted fork with KECS-controlled rebound and compression damping, manual spring preload adjustability and top-out springs
Front Travel119 mm (4.7 inches)
Rear SuspensionNew Uni-Trak®, BFRC gas charged shock with piggyback reservoir, KECS-controlled compression and rebound damping electronically-adjustable spring preload
Rear Travel140 mm (5.5 inches)
Seat
Seat Height836 mm (32.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1260 mm (49.6 inches)
Total Length2136 mm (84.1 inches)
Total Width770 mm (30.3 inches)
Ground Clearance130 mm (5.1 inches)
Wheelbase1481 mm (58.3 inches)
Dry Weight
Wet Weight261.7 kg (577.0 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre190/55-ZR17
Front BrakesDouble disc. Dual radial-mount, opposed 4-piston Brembo Stylema® calipers, dual semi-floating discs, KIBS ABS
Front Brake Diameter330 mm (13.0 inches)
Rear BrakesSingle disc. Opposed 2-piston calipers. ABS.
Rear Brake Diameter250 mm (9.8 inches)
Wheels

Comments

It appears you're interested in specifications for the Kawasaki Ninja H2 SX SE Plus. This Sport model is powered by a Supercharger In-line four, four-stroke engine with 998.0 ccm (60.90 cubic inches) of actual displacement before 11.2:1 compression. Fueling is metered via Injection. DFI® with 40mm throttle bodies (4) with dual injection allowing this machine to produce its 228.0 HP (166.4 kW) @ 11500 RPM horsepower and 141.7 Nm (14.4 kgf-m or 104.5 ft.lbs) @ 11000 RPM torque. According to our records engine heat of the Kawasaki Ninja H2 SX SE Plus is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 190/55-ZR17 . The entire package is supported by the frame, Trellis, high-tensile steel, with swingarm mounting plate. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Dual radial-mount, opposed 4-piston Brembo Stylema® calipers, dual semi-floating discs, KIBS ABS front brakes and Single disc. Opposed 2-piston calipers. ABS. rear brakes. The Kawasaki Ninja H2 SX SE Plus was launched in 2021, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Windscreen. Kawasaki Cornering Management Function (KCMF), Kawasaki Traction Control (KTRC), Kawasaki Launch Control Mode (KLCM), Kawasaki Intelligent anti-lock Brake System (KIBS). Special edition model.
