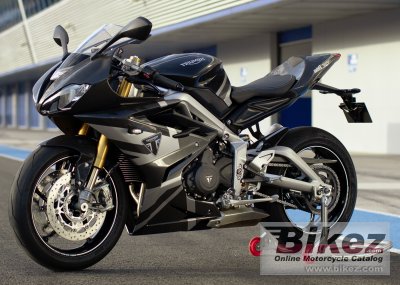

2020 Triumph Daytona Moto TM 765 Limited Edition Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2020 Triumph Daytona Moto TM 765 Limited Edition.

Basic Specs

Triumph Daytona Moto TM 765 Limited Edition
Year2020
MakeTriumph
ModelTriumph Daytona Moto TM 765 Limited Edition
TypeSport
Cost

Engine

Displacement765.0 ccm (46.68 cubic inches)
Type
DetailsIn-line three, four-stroke
Max RPM
Compression12.9:1
Bore/Stroke78.0 x 53.4 mm (3.1 x 2.1 inches)
Valves/Cylinder4
FuelingInjection. Multipoint sequential electronic fuel injection with forced air induction and SAI
IgnitionDigital-inductive type via engine management system
ExhaustStainless steel 3 into 1 system with valve in secondary and under seat silencer
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
ClutchWet. multi-plate
DrivelineO ring chain. Primary drive: Gear.

Performance

Horespower128.0 HP (93.4 kW) @ 12250 RPM
Torque80.0 Nm (8.2 kgf-m or 59.0 ft.lbs) @ 9750 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption5.20 litres/100 km (19.2 km/l or 45.23 mpg)
Fuel Capacity17.41 litres (4.60 US gallons)
Emissions120.6 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeAluminum beam twin spar
Rake23.2 deg
Trail91 mm (3.6 inches)
Front SuspensionÖhlins 43mm upside down forksNIX30 with adjustable preload. rebound and high/low speed compression damping. 110mm wheel travel
Front Travel
Rear SuspensionÖhlins TTX36 twin tubemonoshock with piggy back reservoir adjustable for preload. rebound and high/low speed compression damping. 130mm rear wheel travel
Rear Travel
Seat
Seat Height822 mm (32.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1105 mm (43.5 inches)
Total Length2019 mm (79.5 inches)
Total Width718 mm (28.3 inches)
Ground Clearance
Wheelbase1379 mm (54.3 inches)
Dry Weight165.0 kg (363.8 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc. Brembo M4.30 Stylema 4-piston radial monobloc calipers. ABS.
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc. Brembo single 2-piston sliding caliper. Switchable ABS.
Rear Brake Diameter220 mm (8.7 inches)
WheelsCast aluminium alloy 5-spoke

Comments

It appears you're interested in specifications for the Triumph Daytona Moto TM 765 Limited Edition. This Sport model is powered by a In-line three, four-stroke engine with 765.0 ccm (46.68 cubic inches) of actual displacement before 12.9:1 compression. Fueling is metered via Injection. Multipoint sequential electronic fuel injection with forced air induction and SAI allowing this machine to produce its 128.0 HP (93.4 kW) @ 12250 RPM horsepower and 80.0 Nm (8.2 kgf-m or 59.0 ft.lbs) @ 9750 RPM torque. According to our records engine heat of the Triumph Daytona Moto TM 765 Limited Edition is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 180/55-ZR17 . The entire package is supported by the frame, Aluminum beam twin spar. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Brembo M4.30 Stylema 4-piston radial monobloc calipers. ABS. front brakes and Single disc. Brembo single 2-piston sliding caliper. Switchable ABS. rear brakes. The Triumph Daytona Moto TM 765 Limited Edition was launched in 2020, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
