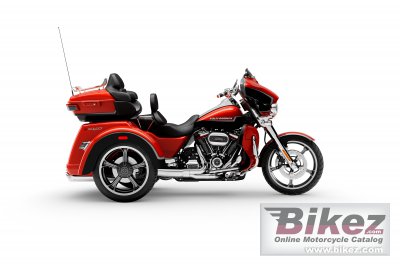

These are the known mechanical and performance specifications for your 2021 Harley-Davidson CVO Tri Glide.
Basic Specs
Year2021
MakeHarley-Davidson
ModelHarley-Davidson CVO Tri Glide
TypeTouring
CostUS$ 48999. MSRP depends on country, taxes, accessories, etc.
Engine
Displacement1917.4 ccm (117.00 cubic inches)
TypeTwin-Cooled™ Milwaukee-Eight® 117
DetailsV2, four-stroke
Max RPM
Compression10.5:1
Bore/Stroke102.0 x 114.3 mm (4.0 x 4.5 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection
Ignition
Exhaust2-1-2 dual exhaust with slash cut tip
Lubrication
CoolingAir
Drivetrain
Gearbox6-speed
Final Drive
ClutchMulti-plate with diaphragm spring in oil bath
DrivelineChain, 34/46 ratio primary drive
Performance
Horespower105.0 HP (76.6 kW) @ 5000 RPM
Torque169.5 Nm (17.3 kgf-m or 125.0 ft.lbs) @ 3750 RPM
Top Speed
Fuel Economy & Polution
Fuel Consumption5.88 litres/100 km (17.0 km/l or 40.00 mpg)
Fuel Capacity22.71 litres (6.00 US gallons)
Emissions136.4 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame Type
Rake26.0 deg
Trail100 mm (3.9 inches)
Front SuspensionTelescopic fork
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height658 mm (25.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2670 mm (105.1 inches)
Total Width
Ground Clearance130 mm (5.1 inches)
Wheelbase1670 mm (65.7 inches)
Dry Weight562.0 kg (1,239.0 pounds)
Wet Weight575.6 kg (1,269.0 pounds)
Wheels & Brakes
Front Tire/Tyre130/60-B19
Rear Tire/Tyre215/45-R18
Front BrakesDouble disc. ABS. 4-piston
Front Brake Diameter
Rear BrakesSingle disc. ABS. Integrated park brake.
Rear Brake Diameter
WheelsGloss Black and Contrast Clear Tomahawk. Two rear wheels.
Comments
Trike. Windshield. Cruise control. Alarm. Foot actuated dual parking brake. Infotainment.
