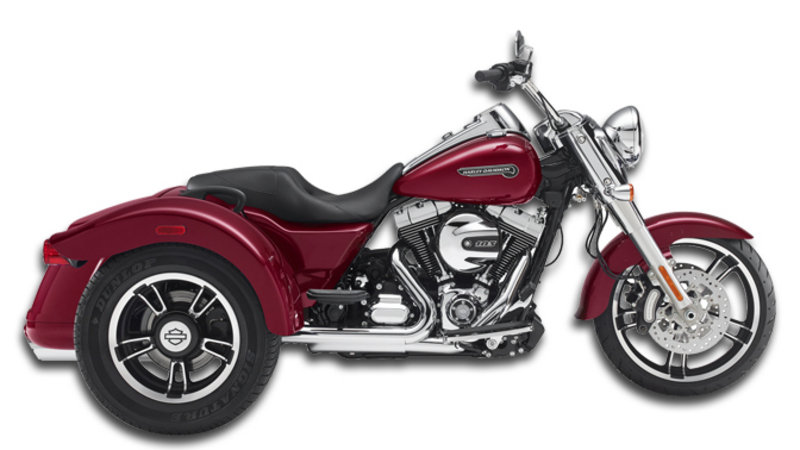

These are the known mechanical and performance specifications for your 2016 Harley-Davidson Freewheeler.
Basic Specs
Year2016
MakeHarley-Davidson
ModelHarley-Davidson Freewheeler
TypeCustom / cruiser
CostUS$ 25499. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1689.61 ccm (103.10 cubic inches)
TypeIntegrated oil cooler
DetailsV2, four-stroke
Max RPM
Compression9.7:1
Bore/Stroke98.3 x 111.1 mm (3.9 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection
Ignition
ExhaustNew mufflers designed to fit within the new shorter Freewheeler body. The slash down style chrome finish mufflers are ~3” shorter than current FL mufflers
Lubrication
CoolingOil & air
Drivetrain
Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelineChain, 34/46 ratio primary drive
Performance
Horespower85.83 HP (62.6 kW)
Torque141.97 Nm (14.5 kgf-m or 104.7 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption6.03 litres/100 km (16.6 km/l or 39.01 mpg)
Fuel Capacity22.71 litres (6.00 gallons)
Emissions139.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame Type
Rake26.0°
Trail101 mm (4.0 inches)
Front SuspensionTelescopic fork
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height699 mm (27.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,619 mm (103.1 inches)
Total Width
Ground Clearance
Wheelbase1,676 mm (66.0 inches)
Dry Weight474.0 kg (1,045.0 pounds)
Wet Weight490.8 kg (1,082.0 pounds)
Wheels & Brakes
Front Tire/Tyre130/60-MT19
Rear Tire/Tyre205/65-P15
Front BrakesDouble disc. 6 piston.
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
WheelsEnforcer Cast Aluminum
Comments
Trike. Cruise control.
