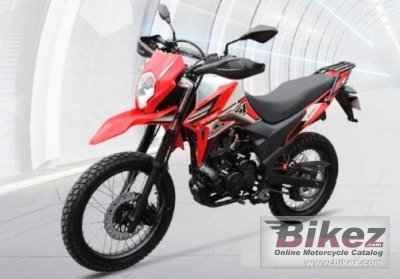

2020 Apsonic Jungle Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2020 Apsonic Jungle.

Basic Specs

Apsonic Jungle
Year2020
MakeApsonic
ModelApsonic Jungle
Cost

Engine

Displacement175.0 ccm (10.68 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.0:1
Bore/Stroke62.0 x 58.0 mm (2.4 x 2.3 inches)
Valves/Cylinder
FuelingCarburettor. PZ27
IgnitionCDI
Exhaust
LubricationPressure splash
CoolingAir

Drivetrain

Gearbox5-speed
Final Drive
ClutchWet multi-plate
Driveline

Performance

Horespower12.2 HP (8.9 kW) @ 8500 RPM
Torque11.5 Nm (1.2 kgf-m or 8.5 ft.lbs) @ 7000 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionMonoshock
Rear Travel
Seat
Seat Height
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1350 mm (53.1 inches)
Dry Weight
Wet Weight

Wheels & Brakes

Front Tire/Tyre
Rear Tire/Tyre
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
WheelsWirespoked

Comments

It appears you're interested in specifications for the Apsonic Jungle. This Enduro / offroad model is powered by a Single cylinder, four-stroke engine with 175.0 ccm (10.68 cubic inches) of actual displacement before 9.0:1 compression. Fueling is metered via Carburettor. PZ27 allowing this machine to produce its 12.2 HP (8.9 kW) @ 8500 RPM horsepower and 11.5 Nm (1.2 kgf-m or 8.5 ft.lbs) @ 7000 RPM torque. According to our records engine heat of the Apsonic Jungle is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is and the rear is . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Expanding brake (drum brake) rear brakes. The Apsonic Jungle was launched in 2020, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Sold in Africa.
