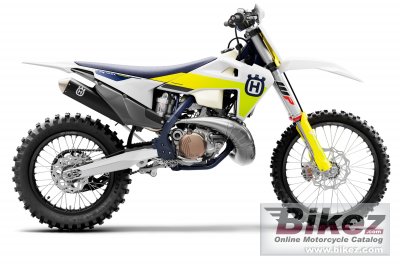

These are the known mechanical and performance specifications for your 2021 Husqvarna TX 300i.
Basic Specs
Engine
Displacement293.2 ccm (17.89 cubic inches)
TypeReed valves, counter balancer shaft
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke72.0 x 72.0 mm (2.8 x 2.8 inches)
Valves/Cylinder
FuelingCarburettor. 38mm flat slide Mikuni TMX
IgnitionKokusan EMS
Exhaust
LubricationMixture oil lubrication
CoolingLiquid
Drivetrain
Gearbox6-speed
Final Drive
ClutchWet, multi-disc clutch, Magura hydraulics
DrivelineConstant mesh
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity8.50 litres (2.25 US gallons)
Emissions
Chassis
Frame Type25CrMo4 steel central-tube
Rake26.5 deg
Trail106 mm (4.2 inches)
Front SuspensionWP-USD Xplor 48 with preload adjuster
Front Travel310 mm (12.2 inches)
Rear SuspensionWP shock absorber with linkage
Rear Travel300 mm (11.8 inches)
Seat
Seat Height950 mm (37.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance375 mm (14.8 inches)
Wheelbase1485 mm (58.5 inches)
Dry Weight101.5 kg (223.8 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre90/90-21
Rear Tire/Tyre140/90-18
Front BrakesSingle disc
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels
